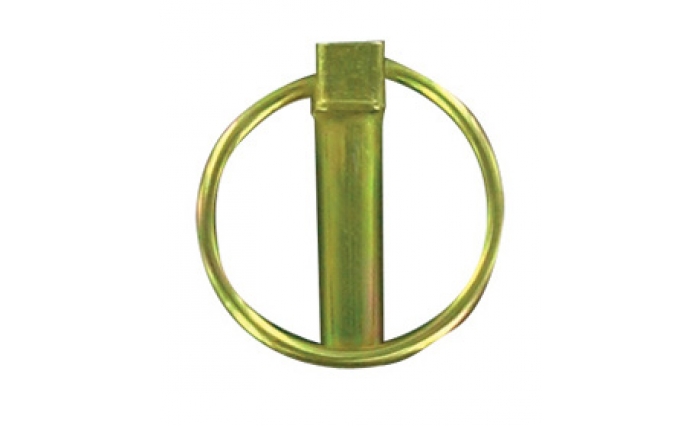

Lynch Pins 11mm (7/16") Pin with Large Ring

Card No. 813.11

Lynch Pins are used to secure the ends of shafts where there is a higher risk of the clip falling off or vibrating loose.

The straight section of the Lynch Pin is inserted into a pre-drilled hole in a shaft, then secured using the circular section of the pin.

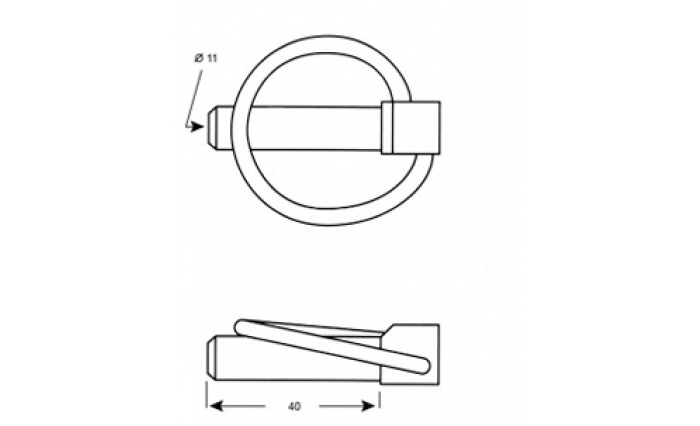

This Lynch Pin is zinc plated and has a pin thickness of 11mm (7/16"), and suits a maximum shaft thickness of 40mm.

Features

  • Zinc Plated Steel Finish
  • 11mm Pin Diameter
  • Maximum 40mm Shaft Diameter

Commonly used in applications for trucks, hitch pins, towing and haulage, motor homes, utes, trailers, tray backs, camper trailers and service vehicles. Also used for mining, vehicle body manufacture, transport, marine, government and defence vehicles.

$1.50 (GST Inc) $1.36 (GST Ex)
