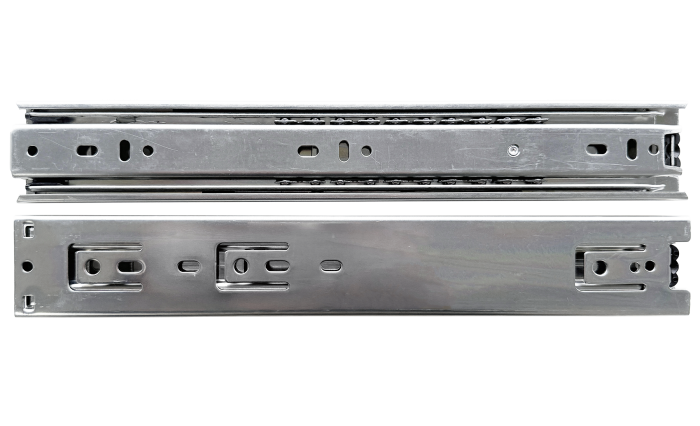

Versatile Heavy Duty Non Locking Drawer Slides

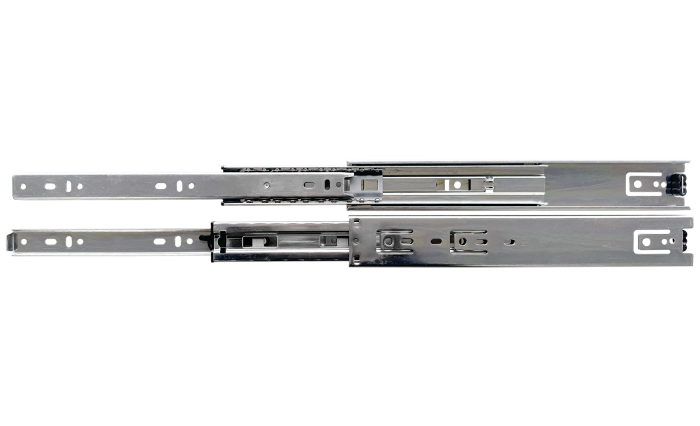

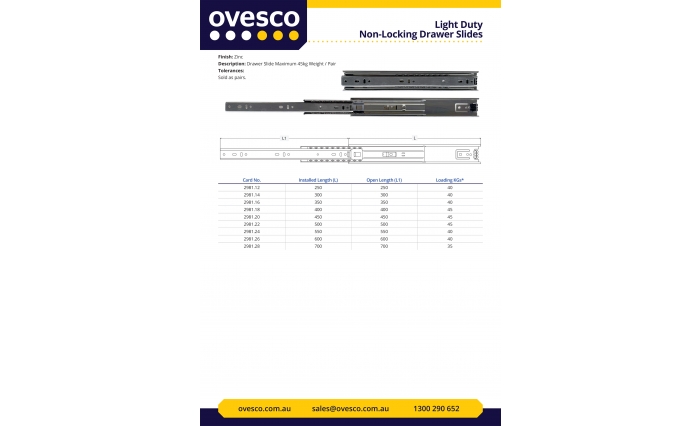

Side Mount 45Kg OCCO Slide
Side Mount 45Kg OCCO Slide

Side Mount 45Kg OCCO Slide

45Kg* OCCO Slide Drawer Slide

Side Mount
ZP Steel

Sold in pairs

*carry capacity per pair

$12.65 - $29.95 (GST Inc) $11.50 - $27.23 (GST Ex) See Details Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Installed / Extension
Moderate Use
Frequent Use
Transportation Use
GST Inc.
GST Ex.
Card No.
2981.12
Part No.
45kg ZP
Installed / Extension
250mm / 250mm
Moderate Use
45kg
Frequent Use
40kg
Transportation Use
35kg
$12.65 (GST Inc.)
$11.50 (GST Ex.)
Card No.
2981.14
Part No.
45kg ZP
Installed / Extension
300mm / 300mm
Moderate Use
45kg
Frequent Use
40kg
Transportation Use
35kg
$14.40 (GST Inc.)
$13.09 (GST Ex.)
Card No.
2981.16
Part No.
45kg ZP
Installed / Extension
350mm / 350mm
Moderate Use
45kg
Frequent Use
40kg
Transportation Use
35kg
$16.00 (GST Inc.)
$14.55 (GST Ex.)
Card No.
2981.18
Part No.
45kg ZP
Installed / Extension
400mm / 400mm
Moderate Use
40kg
Frequent Use
35kg
Transportation Use
30kg
$18.25 (GST Inc.)
$16.59 (GST Ex.)
Card No.
2981.20
Part No.
45kg ZP
Installed / Extension
450mm / 450mm
Moderate Use
40kg
Frequent Use
35kg
Transportation Use
25kg
$20.00 (GST Inc.)
$18.18 (GST Ex.)
Card No.
2981.22
Part No.
45kg ZP
Installed / Extension
500mm / 500mm
Moderate Use
35kg
Frequent Use
30kg
Transportation Use
25kg
$21.95 (GST Inc.)
$19.95 (GST Ex.)
Card No.
2981.24
Part No.
45kg ZP
Installed / Extension
550mm / 550mm
Moderate Use
35kg
Frequent Use
25kg
Transportation Use
20kg
$23.60 (GST Inc.)
$21.45 (GST Ex.)
Card No.
2981.26
Part No.
45kg ZP
Installed / Extension
600mm / 600mm
Moderate Use
25kg
Frequent Use
20kg
Transportation Use
20kg
$25.70 (GST Inc.)
$23.36 (GST Ex.)
Card No.
2981.28
Part No.
45kg ZP
Installed / Extension
700mm / 700mm
Moderate Use
25kg
Frequent Use
15kg
Transportation Use
15kg
$29.95 (GST Inc.)
$27.23 (GST Ex.)
Base Mount 45Kg Drawer Slide
Base Mount 45Kg Drawer Slide

Base Mount 45Kg Drawer Slide

45Kg* Zinc Plated Drawer Slide

Base Mount

Sold in pairs

*carry capacity per pair

$17.50 - $55.85 (GST Inc) $15.91 - $50.77 (GST Ex) See Details Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Installed / Extension
Moderate Use
Frequent Use
Transportation Use
GST Inc.
GST Ex.
Card No.
2991.50
Part No.
Installed / Extension
250mm / 250mm
Moderate Use
45kg
Frequent Use
40kg
Transportation Use
35kg
$17.50 (GST Inc.)
$15.91 (GST Ex.)
Card No.
2991.52
Part No.
Installed / Extension
300mm / 300mm
Moderate Use
45kg
Frequent Use
40kg
Transportation Use
35kg
$19.95 (GST Inc.)
$18.14 (GST Ex.)
Card No.
2991.54
Part No.
Installed / Extension
350mm / 350mm
Moderate Use
45kg
Frequent Use
40kg
Transportation Use
35kg
$22.20 (GST Inc.)
$20.18 (GST Ex.)
Card No.
2991.56
Part No.
Installed / Extension
400mm / 400mm
Moderate Use
40kg
Frequent Use
35kg
Transportation Use
30kg
$25.20 (GST Inc.)
$22.91 (GST Ex.)
Card No.
2991.58
Part No.
Installed / Extension
450mm / 450mm
Moderate Use
40kg
Frequent Use
35kg
Transportation Use
25kg
$27.75 (GST Inc.)
$25.23 (GST Ex.)
Card No.
2991.60
Part No.
Installed / Extension
500mm / 500mm
Moderate Use
35kg
Frequent Use
30kg
Transportation Use
25kg
$30.30 (GST Inc.)
$27.55 (GST Ex.)
Card No.
2991.62
Part No.
Installed / Extension
550mm / 550mm
Moderate Use
35kg
Frequent Use
25kg
Transportation Use
20kg
$32.65 (GST Inc.)
$29.68 (GST Ex.)
Card No.
2991.64
Part No.
Installed / Extension
600mm / 600mm
Moderate Use
25kg
Frequent Use
20kg
Transportation Use
20kg
$35.50 (GST Inc.)
$32.27 (GST Ex.)
Card No.
2991.66
Part No.
Installed / Extension
650mm / 650mm
Moderate Use
25kg
Frequent Use
15kg
Transportation Use
15kg
$38.65 (GST Inc.)
$35.14 (GST Ex.)
Card No.
2991.68
Part No.
Installed / Extension
700mm / 700mm
Moderate Use
25kg
Frequent Use
15kg
Transportation Use
15kg
$55.85 (GST Inc.)
$50.77 (GST Ex.)

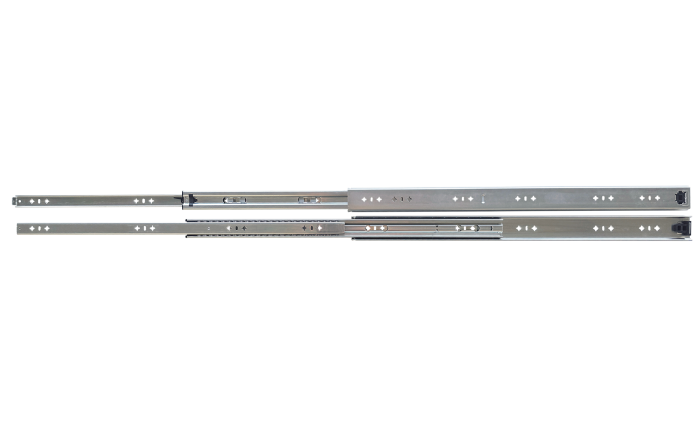

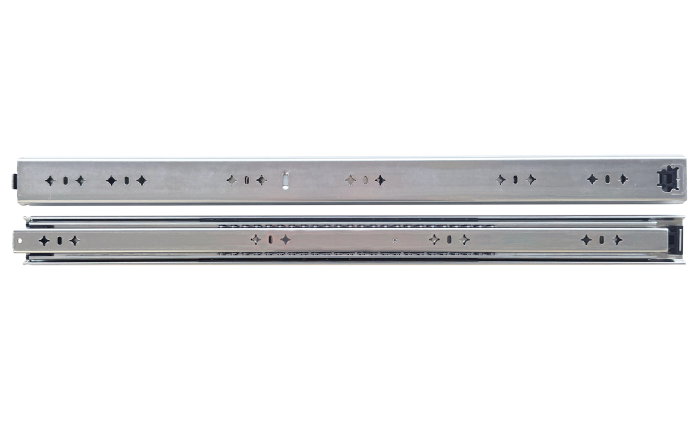

Side Mount 125Kg OCCO Slide
Side Mount 125Kg OCCO Slide

Side Mount 125Kg OCCO Slide

125Kg* OCCO Slide Drawer Slide

Side Mount
ZP Steel

Sold in pairs

*carry capacity per pair

$33.80 - $113.10 (GST Inc) $30.73 - $102.82 (GST Ex) See Details Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Installed / Extension
Moderate Use
Frequent Use
Transportation Use
GST Inc.
GST Ex.
Card No.
2983.14
Part No.
125kg ZP
Installed / Extension
300mm / 300mm
Moderate Use
125kg
Frequent Use
125kg
Transportation Use
125kg
$33.80 (GST Inc.)
$30.73 (GST Ex.)
Card No.
2983.16
Part No.
125kg ZP
Installed / Extension
350mm / 350mm
Moderate Use
125kg
Frequent Use
120kg
Transportation Use
120kg
$39.65 (GST Inc.)
$36.05 (GST Ex.)
Card No.
2983.18
Part No.
125kg ZP
Installed / Extension
400mm / 400mm
Moderate Use
125kg
Frequent Use
110kg
Transportation Use
100kg
$45.55 (GST Inc.)
$41.41 (GST Ex.)
Card No.
2983.20
Part No.
125kg ZP
Installed / Extension
450mm / 450mm
Moderate Use
120kg
Frequent Use
95kg
Transportation Use
95kg
$51.40 (GST Inc.)
$46.73 (GST Ex.)
Card No.
2983.22
Part No.
125kg ZP
Installed / Extension
500mm / 500mm
Moderate Use
110kg
Frequent Use
90kg
Transportation Use
90kg
$57.25 (GST Inc.)
$52.05 (GST Ex.)
Card No.
2983.24
Part No.
125kg ZP
Installed / Extension
550mm / 550mm
Moderate Use
100kg
Frequent Use
85kg
Transportation Use
85kg
$59.65 (GST Inc.)
$54.23 (GST Ex.)
Card No.
2983.26
Part No.
125kg ZP
Installed / Extension
600mm / 600mm
Moderate Use
90kg
Frequent Use
80kg
Transportation Use
80kg
$69.05 (GST Inc.)
$62.77 (GST Ex.)
Card No.
2983.28
Part No.
125kg ZP
Installed / Extension
650mm / 650mm
Moderate Use
85kg
Frequent Use
70kg
Transportation Use
70kg
$75.15 (GST Inc.)
$68.32 (GST Ex.)
Card No.
2983.30
Part No.
125kg ZP
Installed / Extension
700mm / 700mm
Moderate Use
80kg
Frequent Use
70kg
Transportation Use
70kg
$81.60 (GST Inc.)
$74.18 (GST Ex.)
Card No.
2983.32
Part No.
125kg ZP
Installed / Extension
750mm / 750mm
Moderate Use
75kg
Frequent Use
70kg
Transportation Use
70kg
$86.65 (GST Inc.)
$78.77 (GST Ex.)
Card No.
2983.34
Part No.
125kg ZP
Installed / Extension
800mm / 800mm
Moderate Use
70kg
Frequent Use
70kg
Transportation Use
70kg
$91.30 (GST Inc.)
$83.00 (GST Ex.)
Card No.
2983.36
Part No.
125kg ZP
Installed / Extension
850mm / 850mm
Moderate Use
65kg
Frequent Use
65kg
Transportation Use
65kg
$98.40 (GST Inc.)
$89.45 (GST Ex.)
Card No.
2983.38
Part No.
125kg ZP
Installed / Extension
900mm / 900mm
Moderate Use
60kg
Frequent Use
60kg
Transportation Use
60kg
$94.60 (GST Inc.)
$86.00 (GST Ex.)
Card No.
2983.40
Part No.
125kg ZP
Installed / Extension
1000mm / 1000mm
Moderate Use
55kg
Frequent Use
50kg
Transportation Use
50kg
$113.10 (GST Inc.)
$102.82 (GST Ex.)

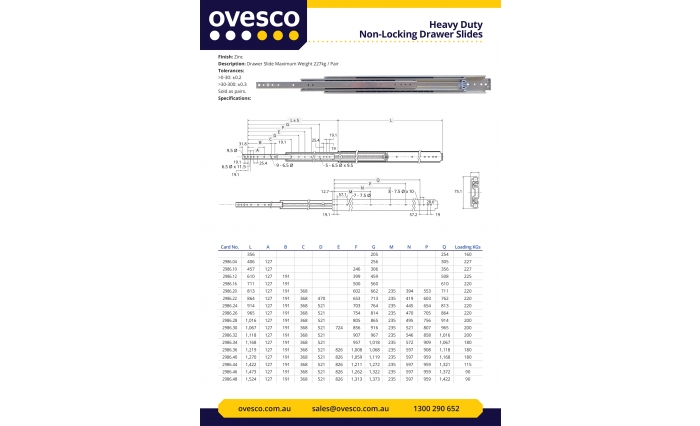

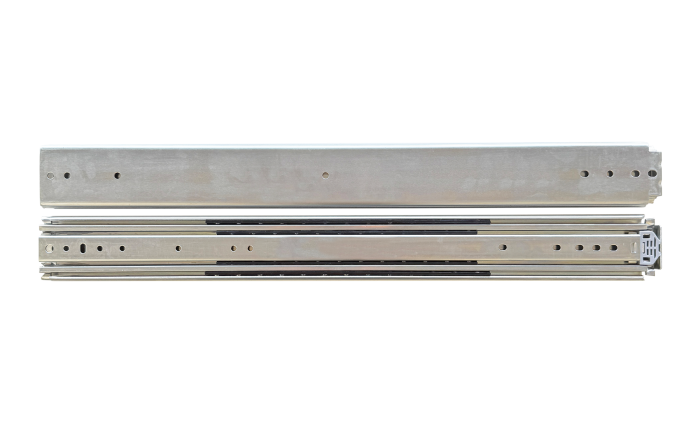

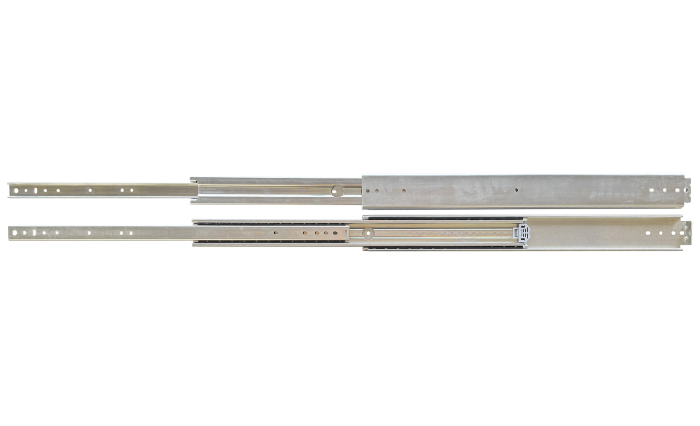

Side Mount 227Kg OCCO Slide
Side Mount 227Kg OCCO Slide

Side Mount 227Kg OCCO Slide

227Kg* OCCO Slide Drawer Slide

Side Mount
ZP Steel

Sold in pairs

*carry capacity per pair

$109.95 - $334.00 (GST Inc) $99.95 - $303.64 (GST Ex) See Details Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Installed / Extension
Moderate Use
Frequent Use
Transportation Use
GST Inc.
GST Ex.
Card No.
2986.10
Part No.
227kg ZP
Installed / Extension
510mm / 510mm
Moderate Use
227kg
Frequent Use
205kg
Transportation Use
205kg
$109.95 (GST Inc.)
$99.95 (GST Ex.)
Card No.
2986.12
Part No.
227kg ZP
Installed / Extension
610mm / 610mm
Moderate Use
200kg
Frequent Use
180kg
Transportation Use
180kg
$136.05 (GST Inc.)
$123.68 (GST Ex.)
Card No.
2986.16
Part No.
227kg ZP
Installed / Extension
710mm / 713mm
Moderate Use
190kg
Frequent Use
170kg
Transportation Use
170kg
$160.30 (GST Inc.)
$145.73 (GST Ex.)
Card No.
2986.20
Part No.
227kg ZP
Installed / Extension
812mm / 812mm
Moderate Use
190kg
Frequent Use
170kg
Transportation Use
170kg
$179.54 (GST Inc.)
$163.22 (GST Ex.)
Card No.
2986.22
Part No.
227kg ZP
Installed / Extension
865mm / 862mm
Moderate Use
180kg
Frequent Use
170kg
Transportation Use
170kg
$183.55 (GST Inc.)
$166.86 (GST Ex.)
Card No.
2986.24
Part No.
227kg ZP
Installed / Extension
915mm / 915mm
Moderate Use
180kg
Frequent Use
160kg
Transportation Use
160kg
$193.35 (GST Inc.)
$175.77 (GST Ex.)
Card No.
2986.26
Part No.
227kg ZP
Installed / Extension
950mm / 950mm
Moderate Use
180kg
Frequent Use
160kg
Transportation Use
160kg
$220.85 (GST Inc.)
$200.77 (GST Ex.)
Card No.
2986.28
Part No.
227kg ZP
Installed / Extension
1015mm / 1015mm
Moderate Use
170kg
Frequent Use
150kg
Transportation Use
150kg
$220.05 (GST Inc.)
$200.05 (GST Ex.)
Card No.
2986.30
Part No.
227kg ZP
Installed / Extension
1065mm / 1065mm
Moderate Use
170kg
Frequent Use
150kg
Transportation Use
150kg
$245.10 (GST Inc.)
$222.82 (GST Ex.)
Card No.
2986.32
Part No.
227kg ZP
Installed / Extension
1117mm / 1113mm
Moderate Use
170kg
Frequent Use
145kg
Transportation Use
145kg
$257.20 (GST Inc.)
$233.82 (GST Ex.)
Card No.
2986.34
Part No.
227kg ZP
Installed / Extension
1170mm / 1170mm
Moderate Use
170kg
Frequent Use
145kg
Transportation Use
145kg
$269.35 (GST Inc.)
$244.86 (GST Ex.)
Card No.
2986.36
Part No.
227kg ZP
Installed / Extension
1220mm / 1205mm
Moderate Use
150kg
Frequent Use
140kg
Transportation Use
140kg
$252.55 (GST Inc.)
$229.59 (GST Ex.)
Card No.
2986.40
Part No.
227kg ZP
Installed / Extension
1320mm / 1315mm
Moderate Use
150kg
Frequent Use
140kg
Transportation Use
140kg
$280.85 (GST Inc.)
$255.32 (GST Ex.)
Card No.
2986.42
Part No.
227kg ZP
Installed / Extension
1370mm / 1375mm
Moderate Use
150kg
Frequent Use
130kg
Transportation Use
130kg
$302.94 (GST Inc.)
$275.40 (GST Ex.)
Card No.
2986.44
Part No.
227kg ZP
Installed / Extension
1422mm / 1415mm
Moderate Use
130kg
Frequent Use
130kg
Transportation Use
130kg
$309.35 (GST Inc.)
$281.23 (GST Ex.)
Card No.
2986.46
Part No.
227kg ZP
Installed / Extension
1475mm / 1470mm
Moderate Use
130kg
Frequent Use
125kg
Transportation Use
125kg
$321.00 (GST Inc.)
$291.82 (GST Ex.)
Card No.
2986.48
Part No.
227kg ZP
Installed / Extension
1523mm / 1520mm
Moderate Use
130kg
Frequent Use
120kg
Transportation Use
120kg
$334.00 (GST Inc.)
$303.64 (GST Ex.)
Base Mount 100Kg Drawer Slide
Base Mount 100Kg Drawer Slide

Base Mount 100Kg Drawer Slide

100Kg* Zinc Plated Drawer Slide

Roller Bearing Base Mount

Sold in pairs

*carry capacity per pair

$150.15 - $289.65 (GST Inc) $136.50 - $263.32 (GST Ex) See Details Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Installed / Extension
Stationary Use
Transportation Use
GST Inc.
GST Ex.
Card No.
2998.52
Part No.
Installed / Extension
450mm / 350mm
Stationary Use
100kg
Transportation Use
90kg
$150.15 (GST Inc.)
$136.50 (GST Ex.)
Card No.
2998.54
Part No.
Installed / Extension
500mm / 400mm
Stationary Use
100kg
Transportation Use
90kg
$154.10 (GST Inc.)
$140.09 (GST Ex.)
Card No.
2998.56
Part No.
Installed / Extension
550mm / 450mm
Stationary Use
100kg
Transportation Use
90kg
$163.45 (GST Inc.)
$148.59 (GST Ex.)
Card No.
2998.58
Part No.
Installed / Extension
600mm / 500mm
Stationary Use
100kg
Transportation Use
90kg
$170.45 (GST Inc.)
$154.95 (GST Ex.)
Card No.
2998.60
Part No.
Installed / Extension
650mm / 550mm
Stationary Use
100kg
Transportation Use
90kg
$199.95 (GST Inc.)
$181.77 (GST Ex.)
Card No.
2998.62
Part No.
Installed / Extension
700mm / 590mm
Stationary Use
100kg
Transportation Use
90kg
$215.40 (GST Inc.)
$195.82 (GST Ex.)
Card No.
2998.64
Part No.
Installed / Extension
800mm / 680mm
Stationary Use
95kg
Transportation Use
85kg
$227.75 (GST Inc.)
$207.05 (GST Ex.)
Card No.
2998.66
Part No.
Installed / Extension
900mm / 770mm
Stationary Use
90kg
Transportation Use
80kg
$272.60 (GST Inc.)
$247.82 (GST Ex.)
Card No.
2998.68
Part No.
Installed / Extension
1000mm / 860mm
Stationary Use
90kg
Transportation Use
80kg
$289.65 (GST Inc.)
$263.32 (GST Ex.)

What are non-locking slides?

Non-locking drawer slides allow drawers to freely open and close without locking into place. Their primary benefit is the ease of access that they provide. Ovesco’s non-locking drawer slides have been designed with vehicle modifications in mind, and are ideal for creating toolboxes and storage compartments in utes, vans, trucks and even heavy machinery.

Our non-locking drawer slides can carry loads between 15kg and 227kg, with extension lengths varying from 250mm to 1520mm. With such a varied range, our non-locking vehicle drawer slides are a versatile solution for practically all repairs or modification projects.

Explore our range for detailed specifications, and get in touch for bespoke advice for your project.



Why Choose Us Image
Why choose us?

Australia’s leading supplier of hardware

Ovesco has been built on selection and service. We take pride in being able to offer product solutions for any issue in the industrial and transport sectors. Better yet, we have the experience to offer qualified advice across the broad selection of items we supply. We know what it takes to meet your expectations.

4000 items

We have over 4000 high quality product lines available in hundreds of different categories.

20 years

We have over 20 years of experience servicing businesses in industrial and transport.

About Ovesco Brands We Stock
Expert Knowledge

How we meet customer expectations

Our staff are highly experienced tradespeople from an array of fields and offer reliable advice for all solutions in the industrial and transport sectors. Contact us by phone or send through an email enquiry and one of our qualified staff will contact you back to assist with the right solution.

Call Us: 1300 151 268 Send An Enquiry
Expert Image

FAQs

When should you use non-locking drawer slides?

Non-locking drawer slides are ideal for applications where the primary requirement is smooth and easy access to the drawer contents without the need for secure locking. They are commonly used in various types of cabinetry and furniture, such as dressers, kitchen cabinets, and office desks.

Are non-locking drawer slides worth it?

How to install non-locking drawer slides?

Have a question?

Contact us

Want to know more about our products? Leave a message and a member of our team will be in touch.
