HUCK PNEUDRAULIC TOOL 256
Card No. 1896.12

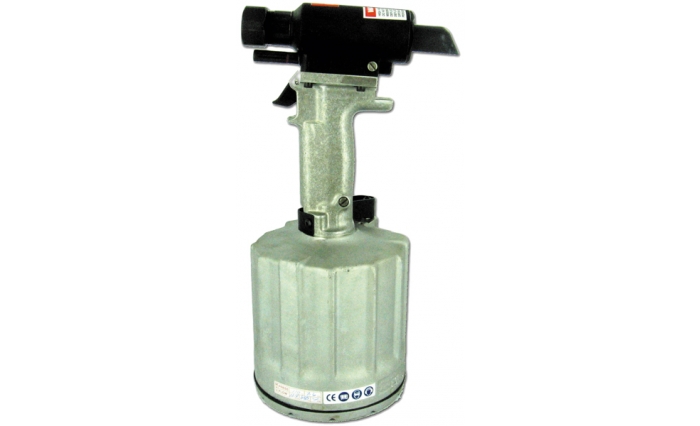

HUCK PNEUDRAULIC TOOL 256
The 256 tool is designed for high-speed production applications, able to install up to 20 fasteners per minute. The tool provides optimum stroke for
one-cycle installations, and features an concentric (inline) pull piston and new front gland design, allowing for easy piston removal.
The 256 is factory-tested for 2000 cycles, ensuring the tool’s reliability, and plated piston rods extend seal life, adding to its durability.
Nose Assembly Selection Table
Type of Fastener Installed Part Number |
Code |
|
|
3/8” Magna-Lok |
99.3318 |
1897.17 |
|
5/16” Magna-Grip |
99.1439 |
1897.21 |
|
3/8” Magna-Grip |
99.1440 |
1897.20 |
|
5/16” BOM |
99.769 |
1897.31 |
Weight: 5.03kg
Stroke: 22.22mm
Capacity: 4800 kgs
Power: 90psi (6 kp/cm2)
Speed: 30 Fasteners/Min
