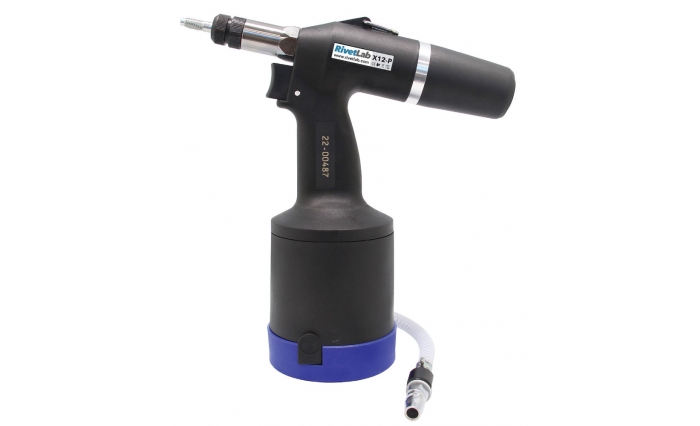

RT-X12-P Spin/Pull Air Insert Tool c/w M4, M5, M6, M8, M10, M12 Mandrels

Air Rivet Nut Tool for Rivet Nuts up to M12

The Rivtec X12 is a cost-effective and reliable air rivet nut tool that is capable of installing rivet nuts up to M12 in a range of materials and rivet studs from M4 to M8. It is suitable for both production and project-based installations.

Made in Europe, it is supplied with full set of nose assemblies

• Fast and simple change of mandrel and nosepiece
• Fast setting cycle with single trigger action for setting and spin-off
• Easy to use pressure setting dial adjusts tool stroke
• Spring balance attachment for fatigue free operation

Specifications:

Product Code:                   RT-X12-P
Weight:                              2 kg
Length:                              262mm
Operating Air Pressure:    5 - 7 bar
Pulling Force:                    23,000 N
Stroke:                               8 mm

Package Accessories:

• Mandrels and nosepieces for M4, M5, M6, M8, M10 & M12
• Operating Manual
