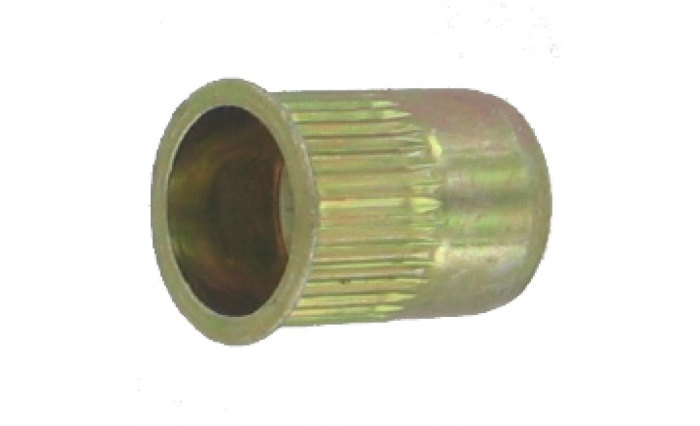

Marson Steel Rivet Nut

Steel Rivet Nut

Small Flange

$0.15 - $0.28 (GST Inc) $0.14 - $0.25 (GST Ex) Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Thread
Min Grip
Max
Hole
A
B
C
D
GST Inc.
GST Ex.
Card No.
6510.00
Part No.
MSR56860
Thread
M4 x 0.7
Min Grip
0.5
Max
2.0
Hole
6.75
A
10.9
B
7.87
C
0.71
D
6.7
$0.15 (GST Inc.)
$0.14 (GST Ex.)
Card No.
6512.00
Part No.
MSR56865
Thread
M4 x 0.7
Min Grip
2.0
Max
3.3
Hole
6.76
A
12.3
B
7.87
C
0.71
D
6.7
$0.28 (GST Inc.)
$0.25 (GST Ex.)
Card No.
6514.00
Part No.
MSR56884
Thread
M5 x 0.8
Min Grip
0.5
Max
3.30
Hole
7.6
A
12.3
B
8.64
C
07.1
D
7.5
$0.15 (GST Inc.)
$0.14 (GST Ex.)
Card No.
6516.00
Part No.
MSR56885
Thread
M5 x 0.8
Min Grip
3.30
Max
5.71
Hole
7.6
A
15.0
B
8.64
C
0.71
D
7.5
$0.25 (GST Inc.)
$0.23 (GST Ex.)
Card No.
6518.00
Part No.
MSR56886
Thread
M6 x 1.0
Min Grip
0.7
Max
4.2
Hole
10
A
14.9
B
11.56
C
0.71
D
9.9
$0.15 (GST Inc.)
$0.14 (GST Ex.)
Card No.
6520.00
Part No.
MSR56887
Thread
M6 x 1.0
Min Grip
4.2
Max
6.6
Hole
10
A
17.5
B
11.56
C
0.71
D
9.9
$0.20 (GST Inc.)
$0.18 (GST Ex.)
Card No.
6522.00
Part No.
MSR56888
Thread
M8 x 1.25
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
15.11
C
0.81
D
13.5
$0.20 (GST Inc.)
$0.18 (GST Ex.)
Card No.
6524.00
Part No.
MSR56889
Thread
M8 x 1.25
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
15.11
C
0.81
D
13.5
$0.25 (GST Inc.)
$0.23 (GST Ex.)
Card No.
6526.00
Part No.
MSR56890
Thread
M10 x 1.5
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
15.11
C
0.81
D
13.5
$0.20 (GST Inc.)
$0.18 (GST Ex.)
Card No.
6528.00
Part No.
MSR56891
Thread
M10 x 1.5
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
15.11
C
0.81
D
13.5
$0.25 (GST Inc.)
$0.23 (GST Ex.)
