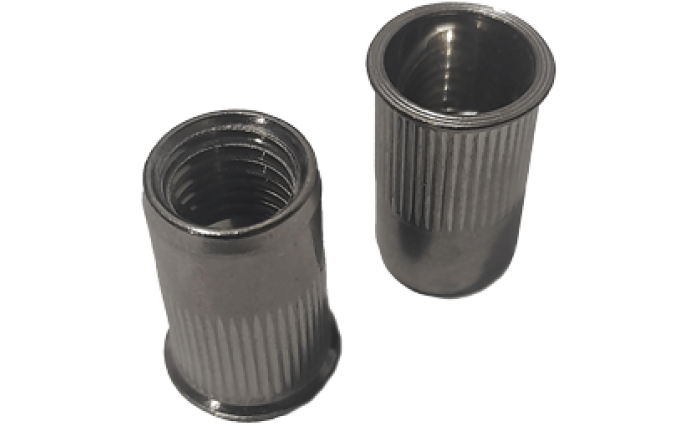

Stainless Steel Reduced Head Insert

Stainless Steel Insert

Reduced Head

Stainless Steel

$0.40 - $1.85 (GST Inc) $0.36 - $1.68 (GST Ex) Select Size Options Ask a Question

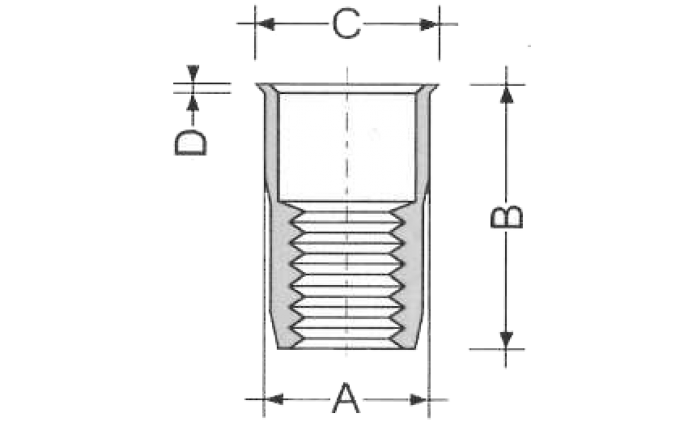

Sizing Options

Card No.
Part No.
Thread
Min Grip
Max
Hole
A
B
C
D
GST Inc.
GST Ex.
Card No.
1884.48
Part No.
M3 x 0.5 SS20R
Thread
M3
Min Grip
0.5
Max
2.0
Hole
5
A
4.9
B
9.0
C
6.0
D
0.5
$0.57 (GST Inc.)
$0.52 (GST Ex.)
Card No.
1884.50
Part No.
M4 x 0.7 SS25R
Thread
M4
Min Grip
0.5
Max
2.5
Hole
6
A
5.9
B
11.0
C
7.0
D
0.5
$0.40 (GST Inc.)
$0.36 (GST Ex.)
Card No.
1885.50
Part No.
M4 x 0.7 SS40R
Thread
M4
Min Grip
2.5
Max
4.0
Hole
6
A
5.9
B
12.5
C
7.0
D
0.5
$0.62 (GST Inc.)
$0.56 (GST Ex.)
Card No.
1884.51
Part No.
M5 x 0.8 SS33R
Thread
M5
Min Grip
0.5
Max
3.3
Hole
7
A
6.9
B
12.0
C
8.0
D
0.5
$0.65 (GST Inc.)
$0.59 (GST Ex.)
Card No.
1885.51
Part No.
M5 x 0.8 SS45R
Thread
M5
Min Grip
3.0
Max
4.5
Hole
7
A
6.9
B
13.5
C
8.0
D
0.5
$0.50 (GST Inc.)
$0.45 (GST Ex.)
Card No.
1884.52
Part No.
M6 x 1.0 SS30R
Thread
M6
Min Grip
0.5
Max
3.0
Hole
9
A
8.9
B
14.0
C
10.0
D
0.5
$0.70 (GST Inc.)
$0.64 (GST Ex.)
Card No.
1885.52
Part No.
M6 x 1.0 SS50R
Thread
M6
Min Grip
3.0
Max
5.0
Hole
9
A
8.9
B
16.0
C
10.0
D
0.5
$0.75 (GST Inc.)
$0.68 (GST Ex.)
Card No.
1884.53
Part No.
M8 x 1.25 SS30R
Thread
M8
Min Grip
0.5
Max
3.0
Hole
11
A
10.9
B
16.0
C
12.0
D
0.5
$0.85 (GST Inc.)
$0.77 (GST Ex.)
Card No.
1885.53
Part No.
M8 x 1.25 SS55R
Thread
M8
Min Grip
3.0
Max
5.5
Hole
11
A
10.9
B
18.5
C
12.0
D
0.5
$1.54 (GST Inc.)
$1.40 (GST Ex.)
Card No.
1884.54
Part No.
M10 x 1.5 SS35R
Thread
M10
Min Grip
1.0
Max
3.5
Hole
13
A
12.9
B
19.0
C
14.2
D
0.8
$1.30 (GST Inc.)
$1.18 (GST Ex.)
Card No.
1885.54
Part No.
M10 x 1.5 SS60R
Thread
M10
Min Grip
3.5
Max
6.0
Hole
13
A
12.9
B
21.5
C
14.2
D
0.8
$1.85 (GST Inc.)
$1.68 (GST Ex.)
