1/8'' Aluminium Body / Steel Mandrel

1/8" Large Flange

  • 5056 Aluminium Body
  • Coated Steel Mandrel
  • IFI Grade 19

Drilll No. #30 and Hole Size(mm) 3.28 - 3.38

Price shown per each Rivet



$0.10 - $0.20 (GST Inc) $0.09 - $0.18 (GST Ex) Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Min Qty
Min Grip
Max Grip

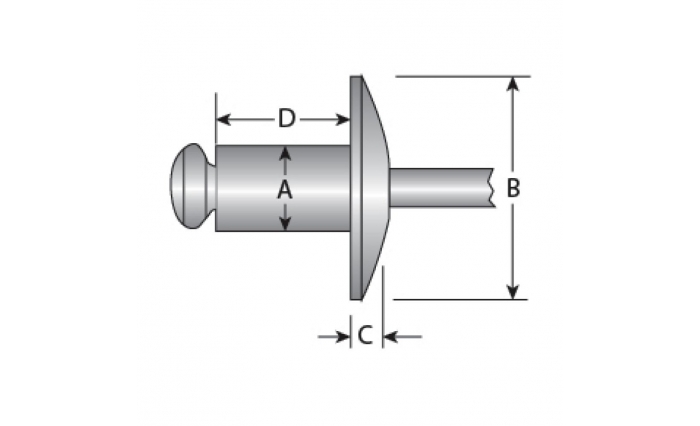

A
B
C
D
GST Inc.
GST Ex.
Card No.
6306.02
Part No.
R9P73LAS402
Min Qty
1000
Min Grip
0.8
Max Grip
3.2
A
3.2
B
9.53
C
1.65
D
7.0
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6306.12
Part No.
R9P73LAS404
Min Qty
1000
Min Grip
4.9
Max Grip
6.4
A
3.2
B
9.53
C
1.65
D
10.2
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6306.22
Part No.
R9P73LAS406
Min Qty
1000
Min Grip
6.5
Max Grip
9.5
A
3.2
B
9.53
C
1.65
D
13.3
$0.15 (GST Inc.)
$0.14 (GST Ex.)
Card No.
6306.32
Part No.
R9P73LAS408
Min Qty
1000
Min Grip
9.6
Max Grip
12.7
A
3.2
B
9.53
C
1.65
D
17.8
$0.20 (GST Inc.)
$0.18 (GST Ex.)
