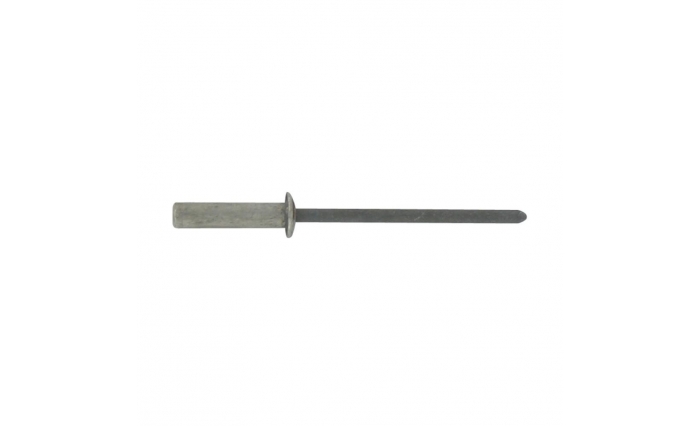

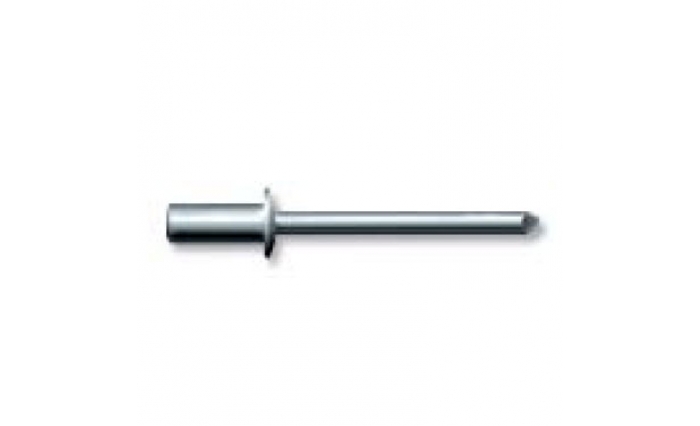

1/8'' Closed End Aluminium Body / Steel Mandrel

1/8" Sealed Button Head

  • 5056 Aluminium Button Head
  • IFI Grade 19

Drilll No. #30 and Hole Size(mm) 3.28 - 3.38

Price shown per each Rivet

$0.10 (GST Inc) $0.09 (GST Ex) Select Size Options Ask a Question

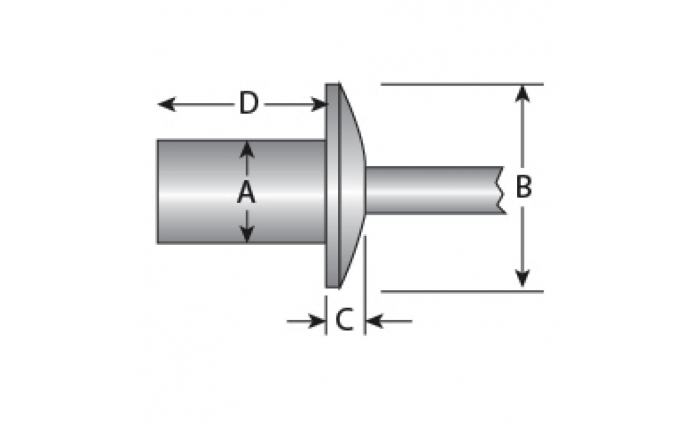

Sizing Options

Card No.
Part No.
Min Qty
Min Grip
Max Grip
A
B
C
D
GST Inc.
GST Ex.
Card No.
6354.02
Part No.
WP4.1.1000
Min Qty
1000
Min Grip
0.8
Max Grip
1.6
A
3.2
B
5.99
C
1.27
D
7.52
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6354.12
Part No.
WP4.2.1000
Min Qty
1000
Min Grip
1.7
Max Grip
3.2
A
3.2
B
5.99
C
1.27
D
9.02
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6354.22
Part No.
WP4.3.1000
Min Qty
1000
Min Grip
3.3
Max Grip
4.8
A
3.2
B
5.99
C
1.27
D
10.52
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6354.32
Part No.
WP4.4.1000
Min Qty
1000
Min Grip
4.9
Max Grip
6.4
A
3.2
B
5.99
C
1.27
D
11.10
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6354.42
Part No.
WP4.5.1000
Min Qty
1000
Min Grip
6.5
Max Grip
7.9
A
3.2
B
5.99
C
1.27
D
13.51
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6354.52
Part No.
WP4.6.1000
Min Qty
1000
Min Grip
8.0
Max Grip
9.5
A
3.2
B
9.55
C
1.27
D
15.06
$0.10 (GST Inc.)
$0.09 (GST Ex.)
