3/16'' Steel Body / Steel Mandrel

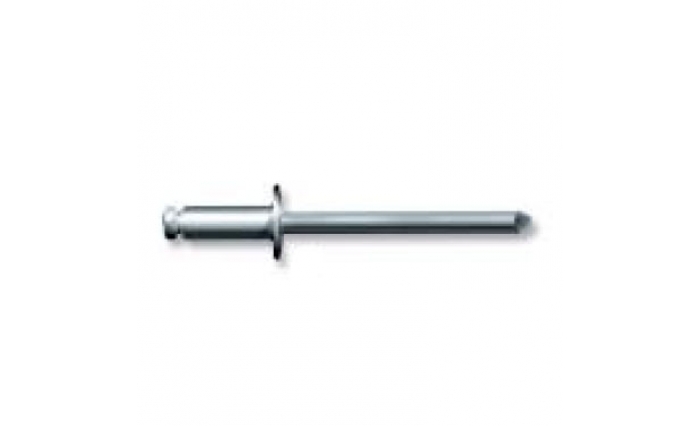

3/16" Button Head

  • Plated Steel Rivet
  • Coated Steel Mandrel
  • IFI Grade 30

Drilll No. #11 and Hole Size(mm) 4.88 - 4.98

Price shown per each Rivet

$0.09 - $0.35 (GST Inc) $0.09 - $0.32 (GST Ex) Select Size Options Ask a Question

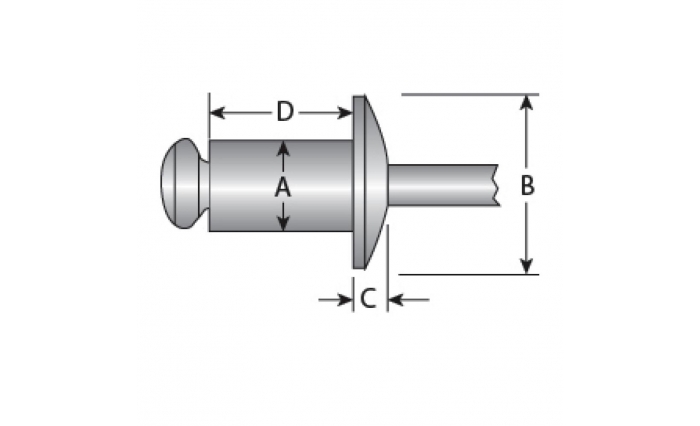

Sizing Options

Card No.
Part No.
Min Qty
Min Grip
Max Grip
A
B
C
D
GST Inc.
GST Ex.
Card No.
6332.02
Part No.
SB6.1.500
Min Qty
500
Min Grip
-
Max Grip
-
A
4.8
B
9.53
C
1.52
D
-
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6332.12
Part No.
SB6.2.500
Min Qty
500
Min Grip
1.6
Max Grip
3.2
A
4.8
B
9.53
C
1.52
D
8.3
$0.09 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6332.22
Part No.
SB6.3.500
Min Qty
500
Min Grip
3.2
Max Grip
4.8
A
4.8
B
9.53
C
1.52
D
9.9
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6332.32
Part No.
SB6.4.500
Min Qty
500
Min Grip
3.3
Max Grip
6.4
A
4.8
B
9.53
C
1.52
D
11.5
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6332.42
Part No.
SB6.5.500
Min Qty
500
Min Grip
6.4
Max Grip
7.9
A
4.8
B
9.53
C
1.52
D
13.1
$0.15 (GST Inc.)
$0.14 (GST Ex.)
Card No.
6332.52
Part No.
SB6.6.500
Min Qty
500
Min Grip
6.5
Max Grip
9.5
A
4.8
B
9.53
C
1.52
D
14.6
$0.15 (GST Inc.)
$0.14 (GST Ex.)
Card No.
6332.62
Part No.
SB6.8.500
Min Qty
500
Min Grip
9.6
Max Grip
12.7
A
4.8
B
9.53
C
1.52
D
17.8
$0.15 (GST Inc.)
$0.14 (GST Ex.)
Card No.
6332.72
Part No.
SB6.10.250
Min Qty
250
Min Grip
12.8
Max Grip
15.9
A
4.8
B
9.53
C
1.52
D
21.0
$0.25 (GST Inc.)
$0.23 (GST Ex.)
Card No.
6332.82
Part No.
SB6.12.250
Min Qty
250
Min Grip
16.0
Max Grip
19.1
A
4.8
B
9.53
C
1.52
D
24.2
$0.30 (GST Inc.)
$0.27 (GST Ex.)
Card No.
6332.92
Part No.
SB6.16.250
Min Qty
250
Min Grip
22.3
Max Grip
25.4
A
4.8
B
9.53
C
1.52
D
30.5
$0.35 (GST Inc.)
$0.32 (GST Ex.)
