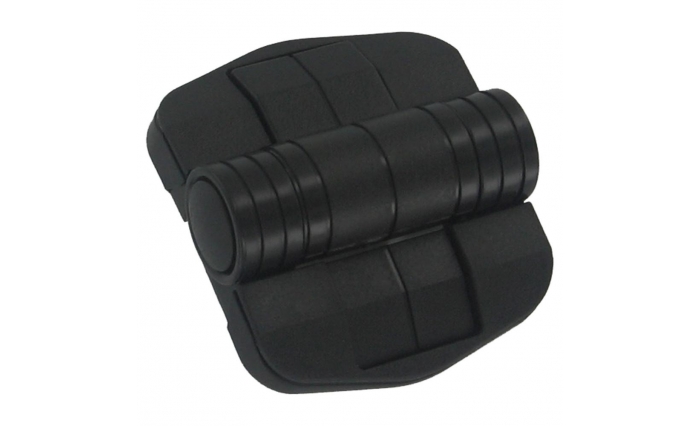

C6 Hinge

Position Control, Detent

  • Holds door open without secondary mechanical support
  • Detent holds door at  80°, 115° and 150°
  • All version can be further opened to 180°

$33.85 - $33.95 (GST Inc) $30.77 - $30.86 (GST Ex) Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Detent Angle
Positioning Torque
GST Inc.
GST Ex.
Card No.
1142.10
Part No.
C6.0
Detent Angle
No Detents
Positioning Torque
N/A
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1142.11
Part No.
C6.1
Detent Angle
80°
Positioning Torque
0.7 Nm (6 lbf)
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1142.12
Part No.
C6.2
Detent Angle
80°
Positioning Torque
1.1 Nm (10 lbf)
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1145.45
Part No.
C6.3
Detent Angle
80°
Positioning Torque
1.7 Nm (15 lbf)
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1142.13
Part No.
C6.4
Detent Angle
115°
Positioning Torque
0.7 Nm (6 lbf)
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1144.47
Part No.
C6.5
Detent Angle
115°
Positioning Torque
1.1 Nm (10 lbf)
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1144.49
Part No.
C6.6
Detent Angle
115°
Positioning Torque
1.7 Nm (15 lbf)
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1142.14
Part No.
C6.7
Detent Angle
150°
Positioning Torque
0.7 Nm (6 lbf)
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1142.15
Part No.
C6.8
Detent Angle
150°
Positioning Torque
1.1 Nm (10 lbf)
$33.85 (GST Inc.)
$30.77 (GST Ex.)
Card No.
1142.16
Part No.
C6.9
Detent Angle
150°
Positioning Torque
1.7 Nm (15 lbf)
$33.95 (GST Inc.)
$30.86 (GST Ex.)
