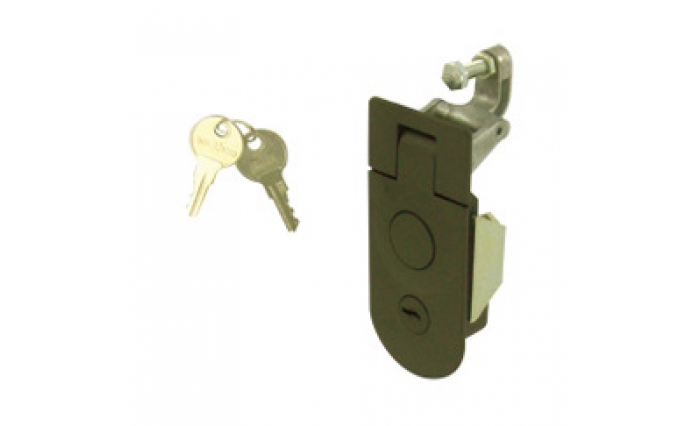

C5 Compression Latch

Sealed Lever Latch

Black Powder Coated

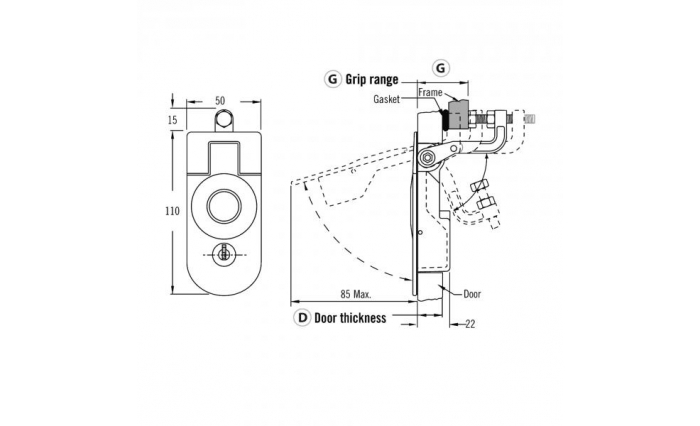

Door Thickness 1 - 11mm

  • Low profile when latched
  • Easy grip adjustment
  • Push button actuation

Can be installed with Flange Gasket, sold separately

$88.60 - $106.95 (GST Inc) $80.55 - $97.23 (GST Ex) Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Lock Style
Grip Range (mm)
GST Inc.
GST Ex.
Card No.
1145.00
Part No.
C5.21.25
Lock Style
Locking
Grip Range (mm)
14 - 29
$100.35 (GST Inc.)
$91.23 (GST Ex.)
Card No.
1145.41
Part No.
C5.21.15
Lock Style
Locking
Grip Range (mm)
1 - 14
$106.95 (GST Inc.)
$97.23 (GST Ex.)
Card No.
1145.42
Part No.
C5.11.15
Lock Style
Non Locking
Grip Range (mm)
1 - 14
$88.60 (GST Inc.)
$80.55 (GST Ex.)
Card No.
1145.01
Part No.
C5.11.25
Lock Style
Non Locking
Grip Range (mm)
14 - 29
$88.60 (GST Inc.)
$80.55 (GST Ex.)
Card No.
1145.43
Part No.
C5.21.35
Lock Style
Locking
Grip Range (mm)
29 - 45
$104.10 (GST Inc.)
$94.64 (GST Ex.)
Card No.
1145.16
Part No.
C5.11.35
Lock Style
Non Locking
Grip Range (mm)
29 - 45
$88.60 (GST Inc.)
$80.55 (GST Ex.)
Card No.
1145.03
Part No.
C5.21.45
Lock Style
Locking
Grip Range (mm)
45 - 57
$100.35 (GST Inc.)
$91.23 (GST Ex.)
Card No.
1145.44
Part No.
C5.11.45
Lock Style
Non Locking
Grip Range (mm)
45 - 57
$88.60 (GST Inc.)
$80.55 (GST Ex.)
