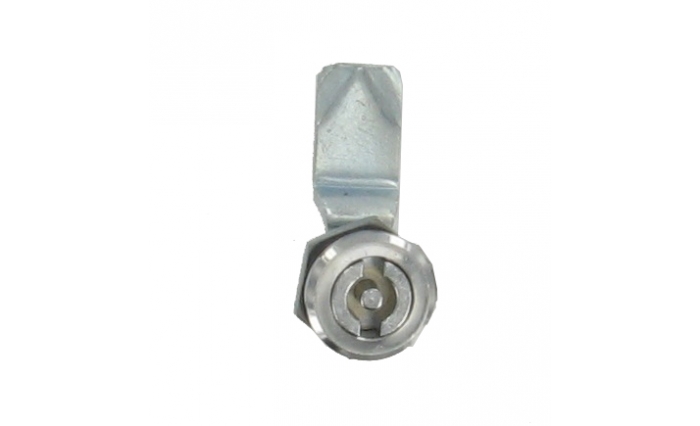

Econ 1/4 Turn 5mm Double Bit
Card No. 1081.23
Quarter Turn Locks are commonly used where simple 1 point locking systems are required. This lock is lockable using a 5mm Double Bit key (1081.53), can operate through an angle of 90° (quarter turn), and can be installed into panels with a maximum thickness of 6mm.
This lock suits applications where a slide compression fit is required (i.e. where lock is abutting pinchweld or foam tape)
Features
- Die Cast Chrome Face
- Zinc Plated Steel Tongue
- 5mm Double Bit Drive
- Key Sold Seperately (1081.53)

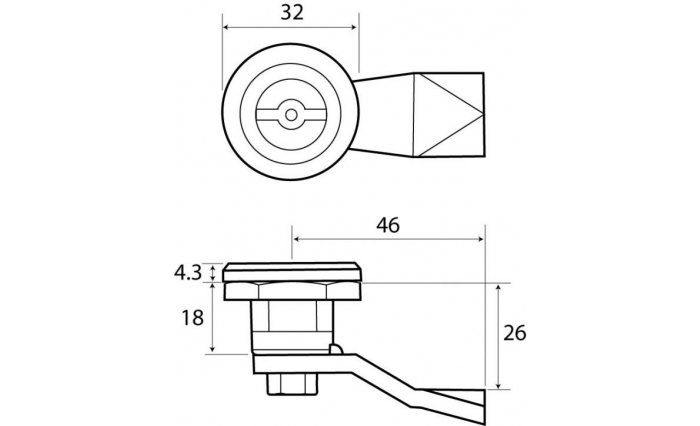

- 26mm Maximum Grip
- 6mm Maximum Panel Thickness
- 1 Way Locking
For alternative cam lock options, ovesco also stocks the Southco E5 Cam Latch range
This lock is commonly used for electrical switchboards, HVAC, medical and general cabinets, tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes and camper trailers.
