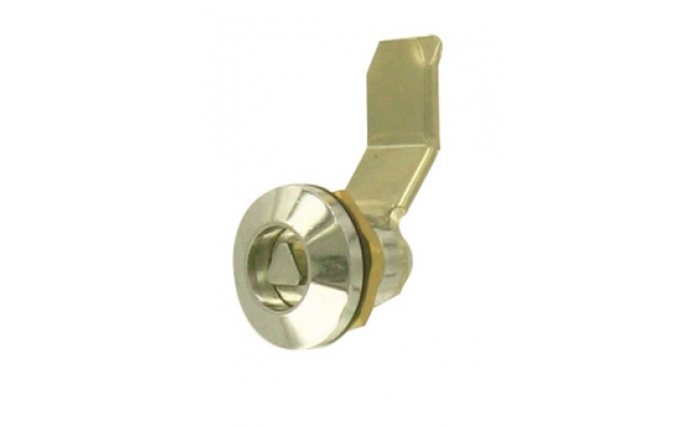

Econ 1/4 Turn 8mm Triangle Drive

Quarter Turn Locks are commonly used where simple 1 point locking systems are required. This lock is lockable using an 8mm triangle drive key (1081.51), can operate through an angle of 90° (quarter turn), and can be installed into panels with a maximum thickness of 6mm.

This lock suits applications where a slide compression fit is required (i.e. where lock is abutting pinchweld or foam tape)

NOTE: This lock is an economy lock, and is not suited for industrial applications.

Features

• Chrome Finish
• 8mm Triangle Drive
• Key Sold Seperately (1081.51)
• 29mm Maximum Grip
• 6mm Maximum Panel Thickness
• 1 Way Locking

For alternative cam lock options, ovesco also stocks the Southco E5 Cam Latch range

This lock is commonly used for medical and general cabinets, as well as tool boxes and service vehicles. It is also used in canopies, marine applications, motor homes and camper trailers.
