Bow Tie Clip 4mm
Card No. 813.48

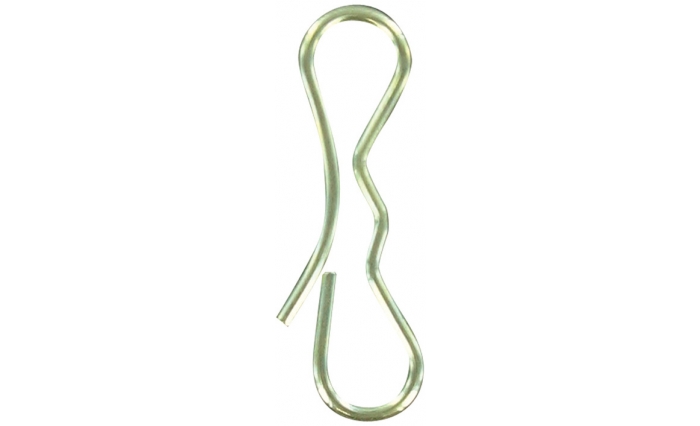

Bow Tie Clips, also known as Bow Tie Cotter Pins, are so named die to their shape, resembling a bow tie. Bow Tie Clips are used to secure the ends of round shafts where there is a higher risk of the clip falling off or vibrating loose.
The long back section of the Bow Tie Clip is inserted into a pre-drilled hole in a shaft until the shaft is met by the semi-circular middle section on the front of the clip.

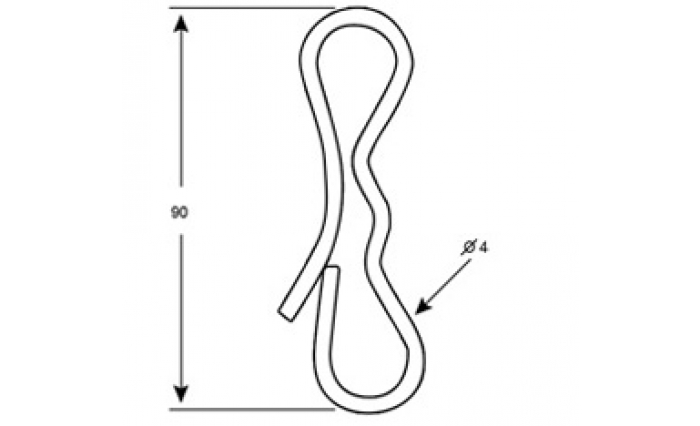

This Bow Tie Clip is zinc plated, has a wire thickness of 4mm (5/32"), and suits a 12-20mm shaft.
Features
- Zinc Plated Steel Finish
- 4mm Wire Diameter
- Suits 12-20mm Shaft
- Anti Vibration Design
- Single Coil
Commonly used in applications for trucks, towing and haulage, motor homes, utes, trailers, tray backs, camper trailers and service vehicles. Also used for mining, vehicle body manufacture, transport, marine, government and defence vehicles.
