Tamper Resistant, Dust Proof Swing Handle Locks
Swing Handle LBB
Card Number. 1071.65
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, and operates on a push button system. This lock is lockable with a tubular security key. This lock has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Black Die Cast Steel Handle
- Black Die Cast Steel Base
- 8mm Square Drive Shaft
- Push Button Operation
- Vandal Resistant
- Lockable Using Tubular Security Key
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for electrical switchboards, server room doors, electrical boxes and on council properties. It is also used in canopies, service vehicles, motor homes and camper trailers.
Swing Handle Black Key Different
Card Number. 1071.34
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, and operates on a push button system. This lock is lockable with a lock-specific tubular security key. This lock has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Black Die Cast Steel Handle
- Black Die Cast Steel Base
- 8mm Square Drive Shaft
- Push Button Operation
- Vandal Resistant
- Lockable Using Tubular Security Key
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for electrical switchboards, server room doors, electrical boxes and on council properties. It is also used in canopies, service vehicles, motor homes and camper trailers.
Swing Handle LCC
Card Number. 1071.66
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, and operates on a push button system. This lock is lockable with a tubular security key. This lock has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Die Cast Chrome Plated Handle
- Die Cast Chrome Plated Base
- 8mm Square Drive Shaft
- Push Button Operation
- Vandal Resistant
- Lockable Using Tubular Security Key
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for electrical switchboards, server room doors, electrical boxes and on council properties. It is also used in canopies, service vehicles, motor homes and camper trailers.
Swing Handle Chrome Key Different
Card Number. 1071.32
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, and operates on a push button system. This lock is lockable with a lock-specific tubular security key. This lock has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Die Cast Chrome Plated Handle
- Die Cast Chrome Plated Base
- 8mm Square Drive Shaft
- Push Button Operation
- Vandal Resistant
- Lockable Using Tubular Security Key
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for electrical switchboards, server room doors, electrical boxes and on council properties. It is also used in canopies, service vehicles, motor homes and camper trailers.
Swing Handle Chrome
Card Number. 1071.62
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, and operates on a push button system. This lock is key lockable, has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Die Cast Chrome Plated Handle
- Die Cast Chrome Plated Base
- 8mm Square Drive Shaft
- Push Button Operation
- Vandal Resistant
- Key Lockable
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for electrical switchboards, server room doors and electrical boxes. It is also used in canopies, service vehicles, motor homes, cabinets and camper trailers.
Swing Handle Black Chrome
Card Number. 1071.60
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, meaning the lock is completely protected against dust ingress, and is protected from water ingress for loads up to a low pressure water jet. This lock is pad lockable, has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Die Cast Chrome Plated Handle
- Black Die Cast Steel Base
- 8mm Square Drive Shaft
- Pad Lockable
- Vandal Resistant
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes, cabinets and camper trailers.
Swing Handle Chrome PL
Card Number. 1071.61
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, meaning the lock is completely protected against dust ingress, and is protected from water ingress for loads up to a low pressure water jet. This lock is pad lockable, has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Die Cast Chrome Plated Handle
- Die Cast Chrome Plated Base
- Grade 316 Stainless Steel Hasp
- 8mm Square Drive Shaft
- Pad Lockable
- Vandal Resistant
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes, cabinets and camper trailers.

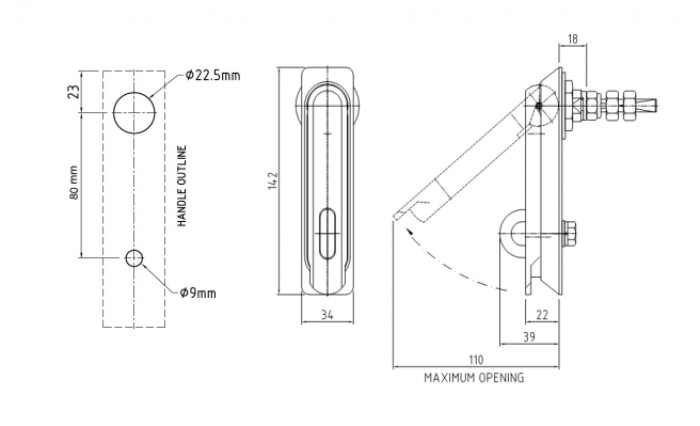

Swing Handle S/Steel
Card Number. 1071.64
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, meaning the lock is completely protected against dust ingress, and is protected from water ingress for loads up to a low pressure water jet. This lock is pad lockable, has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Grade 316 Stainless Steel Finish
- 8mm Square Drive Shaft
- Pad Lockable
- Vandal Resistant
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes, cabinets and camper trailers.
Swing Handle Chrome Push Button
Card Number. 1071.40
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, meaning the lock is completely protected against dust ingress, and is protected from water ingress for loads up to a low pressure water jet. This lock is key lockable using a tubular security key, has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Die Cast Chrome Plated Handle
- Die Cast Chrome Plated Base
- 8mm Square Drive Shaft
- Tubular Security Key Lockable
- Vandal Resistant
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes, cabinets and camper trailers.
Swing Handle Key Different
Card Number. 1071.37
Swing Handle Locks are commonly used in areas where tamper resistance is required. It is IP 65 rated, meaning the lock is completely protected against dust ingress, and is protected from water ingress for loads up to a low pressure water jet. This lock is key lockable using a lock-specific tubular security key, has an 8mm square shaft, and can be used with cam latches and rods. This lock can be mounted in sheet metal of approximately 6mm diameter or less.
Features
- Die Cast Chrome Plated Handle
- Die Cast Chrome Plated Base
- 8mm Square Drive Shaft
- Tubular Security Key Lockable
- Vandal Resistant
- Can Be Configured For 2 Or 3 Way Locking
This lock is commonly used for tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes, cabinets and camper trailers.
Recessed Dish
Card Number. 1082.60
This dish is used with a wide range of Swing Handle Locks allowing for the recessing of these locks. This dish is made from Grade 316 Stainless Steel, and has a 12mm recess depth. The dish has 4 mounting holes for installation.
Features
- Grade 316 Stainless Steel Finish
- 12mm Recess
- Gasket Sold Seperately (1082.62)
- Suits Most Swing Handle Locks
This dish is commonly used with swing handles for cabinets, cupboards, tool boxes and service vehicles. It is also used in canopies, mining and marine applications, motor homes and camper trailers.
Gasket
Card Number. 1082.62
This gasket is for use with a recessed dish (1082.60), which are used with a wide range of Swing Handle Locks that allow for the recessing of these locks.
Features
- Quality Foam Finish
- Recessed Dish Sold Seperately (1082.60)
- Suits Most Swing Handle Locks
The gasket and dish are commonly used with swing handles for cabinets, cupboards, tool boxes and service vehicles. They are also used in canopies, mining and marine applications, motor homes and camper trailers.
Secure your site and vehicles With lockable swing handles
Swing handle locks are tamper-resistant mechanisms used to protect utility vehicles, portable offices, electrical enclosures and other sensitive areas on work sites. These handles obscure access to the locking mechanism, making it difficult for vandals to pick or break the lock, while also protecting the internal mechanism from environmental debris.
Ovesco’s swinging lock handles are designed for heavy-duty industrial usage. They boast die-cast steel and chrome-plated finishes, ensuring protection against corrosion and abrasion, and some can be configured for two or even three-way locking.
Check each swing handle design for design and installation specs. Get in touch for recommendations or advice.
Why choose us?
Australia’s leading supplier of hardware
Ovesco has been built on selection and service. We take pride in being able to offer product solutions for any issue in the industrial and transport sectors. Better yet, we have the experience to offer qualified advice across the broad selection of items we supply. We know what it takes to meet your expectations.
4000 items
We have over 4000 high quality product lines available in hundreds of different categories.
20 years
We have over 20 years of experience servicing businesses in industrial and transport.
Expert Knowledge
How we meet customer expectations
Our staff are highly experienced tradespeople from an array of fields and offer reliable advice for all solutions in the industrial and transport sectors. Contact us by phone or send through an email enquiry and one of our qualified staff will contact you back to assist with the right solution.
FAQs
What are swing handle locks?
Swing handle locks are mechanical locking devices commonly used to secure doors, cabinets, enclosures, and other closures. They feature a handle that swings horizontally to actuate the locking mechanism, providing a secure closure when engaged.
How do swing locks work?
How do I select the right swing handle lock for my application?
